Connecting a Growatt Inverter to ShineNet

[Previously, on randomnoun]. This post is a followup from my earlier entry on the trials and tribulations of getting solar panels hooked up to my house in Red Hill.

So I thought it would be interesting to graph my solar energy using ShineNet, a defunct software package created by Growatt, the manufacturers of the inverter that sits on the side of the house, connecting the panels to my newly-upgraded switchboard.

There’s not much in the way of instructions on how to do this on the internet, so here’s how to set it up. What you’ll need in order to do this is:

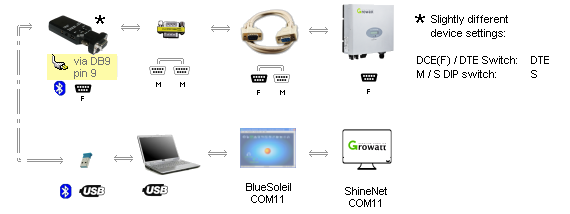

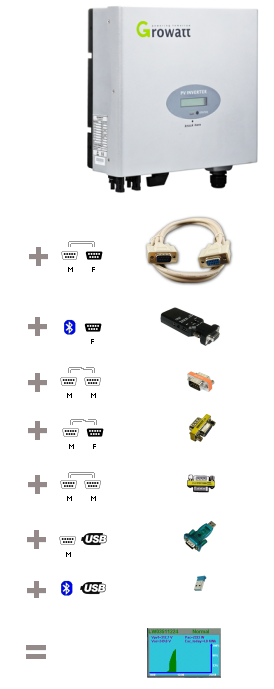

things + things + things = graphs
things + things + things = graphs



In the images above, the

icon-db9-male

icon indicates a Male DB9 connector,

icon-db9-female

indicate Female DB9,

icon-null-modem

indicates a null modem or cross-over connection, and

icon-straight-through

indicate extension or straight-through connections,

icon-usb

represents USB, and

icon-bluetooth

represents Bluetooth.


Drivers

If you’re anything like me, your Windows XP laptop (and it has to be Windows XP), is in that sweet spot between being too old to have bluetooth, and too young to have actual physical COM ports, in which case you’ll need to grab a couple of usb adapters to provide those things. Get the cheapest ones you can find from ebay , and then be amazed when they’re not recognised automatically when you plug them in.

I got these devices:

Neither of these so-called XP-compatible devices come with drivers, so what I did eventually was to install an old trial version of the BlueSoleil bluetooth stack (limited to 5MB data transfer), and the driver for the HL-340 chipset serial adapter from some random website (after finding some instructions on this forum post).

You may find the usbview utility from FTDI helpful when scouring websites looking for anything vaguely useful. (usbview gives you the Vendor:Product IDs of all USB devices attached to your system; the devices above for me were listed as 1A86:7523 and 0A12:0001) .

Once you do that, go into Device Manager and take note of the COM port assigned to the Bluetooth and DB9 USB adapters. On my laptop, the wired DB9 adapter is attached to COM24, and the wireless BT adapter takes up COM ports 11 to 23.

You might want to pair up a bluetooth device that you know works, just to prove that the device driver is functioning correctly. I used some headphones.

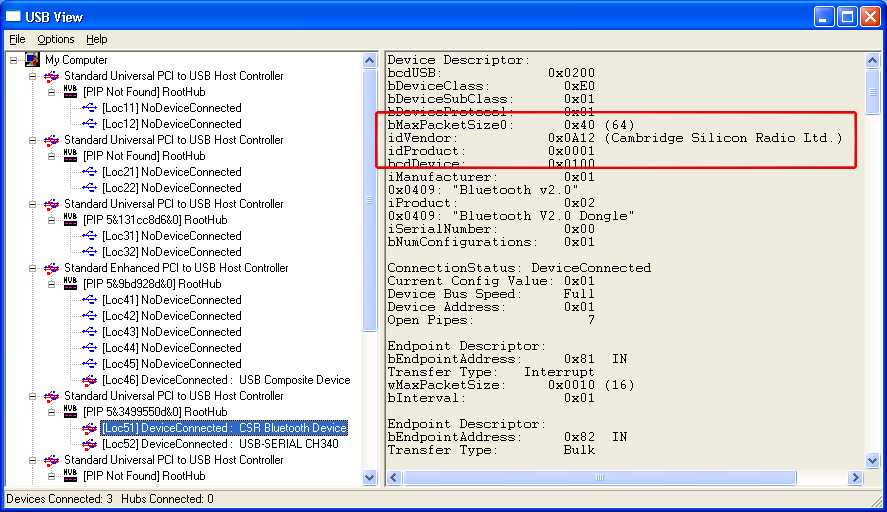

Bluetooth USB device in usbview

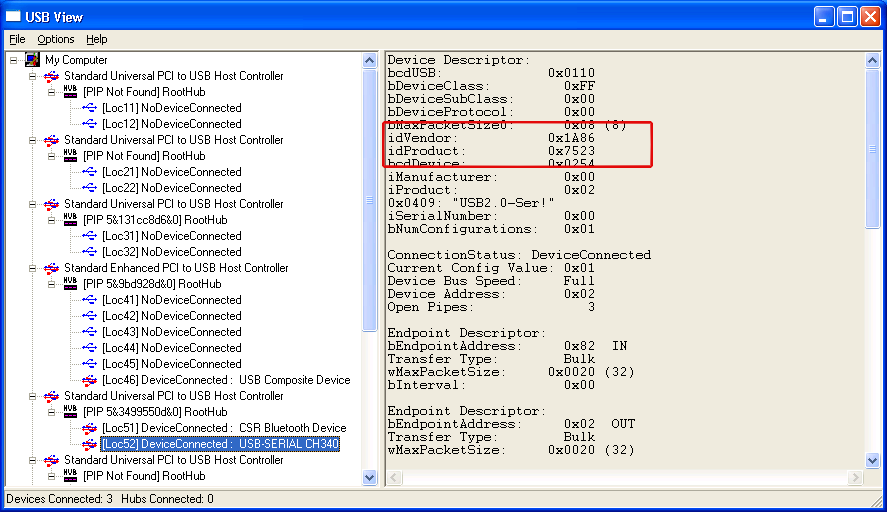

DB9 USB device in usb view

BlueSoleil after detecting a bluetooth device

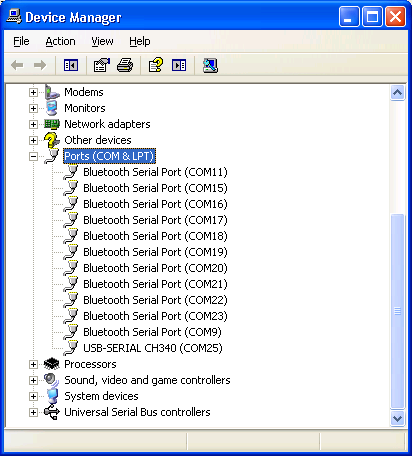

Device manager showing BlueSoleil COM ports and DB9 USB COM ports

From top left, Bluetooth USB device in usbview; DB9 USB device in usbview; BlueSoleil after detecting a bluetooth device; Device Manager showing BlueSoleil COM ports and DB9 USB COM ports. Click to zoom.

ShineNet

ShineNet is the truly awful software package created by Growatt to track solar energy collection from the array of PV cells on your roof. So awful, in fact, that they’re no longer providing it via their website, and any requests to their eight different contact email addresses will fail to get a response from them. What you might want to try doing is sending pleading emails every week or so to people who mention that they’ve installed ShineNet on the solar software section of the whirlpool forum, and hope that someone responds.

(Four Weeks Later…)

There are two types of ShineNet in the world, v1 and v2. This link will give you v1.2, which for the purposes of this entry is actually v1.

Here’s a comparison table, bearing in mind that I haven’t actually tried v2 yet:

Version ShineNet v1 ShineNet v2
RS232 Protocol Proprietary modbus
Operating System Windows XP Windows XP
Software Quality Crap Probably crap
Persistence ? HyperSQL (HSQL) (info)
Inverter COM port
setting
Anything other than ‘MOVE
(e.g. ‘COM1‘)
MOVE

Yes, there are other software packages that profess to comprehend modbus (used by v2) and the proprietary protocol that v1 uses, but I thought it would be slightly less time consuming to use the software made by the manufacturer of the inverter first, before hooking up something with more bells and whistles (controlled by DMX, I’d imagine).

Configuration 1

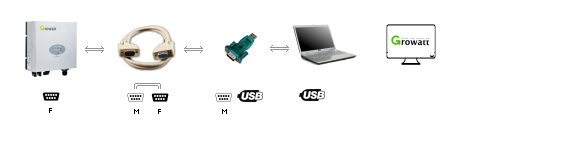

Inverter -> DB9 extension cable -> USB to DB9 adapter -> laptop -> ShineNet
Configuration 1: Inverter -> DB9 extension cable -> USB to DB9 adapter -> laptop -> ShineNet


This was the ‘simplest possible thing that could work’ configuration I thought I’d try first.

Unscrew the coverplate on the bottom of the inverter, plug in a cable, and throw that through the closest window. Whilst your outside, knock on your inverter a few times to set the COM port to anything other than the default “MOVE” setting (e.g. “COM1“).

On my inverter, they were too cheap to put two actual buttons on the thing, so you navigate the LCD menu by knocking once to change menu items and knocking twice to select things. I suppose I shouldn’t knock it, it works. Luckily I come from the school of hard knocks. It’s not as if this thing is on Fort Knox. That’s the last knock-knock joke. Etc.

Go back inside and attach the cable to the USB->COM DB9 adapter connected to your laptop.

Fire up ShineNet, from the main menu select SoftSystem -> System Set, set the COM port to the value shown in Device Manager for your USB->COM DB9 adapter and click Set.

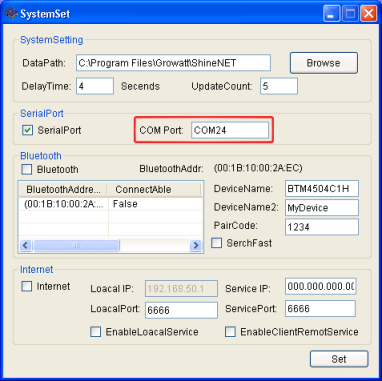

ShineNet SystemSet dialog box set to COM24
ShineNet SystemSet dialog box set to COM24

From the main menu again, select Inverter -> Connect/Disconnect, and with any luck you’ll eventually get this:

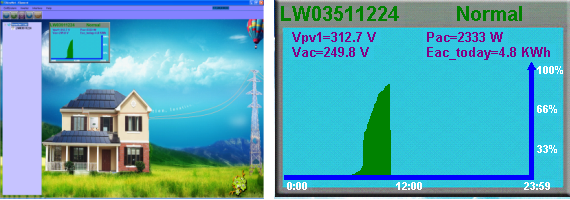

The aesthetically-challenged ShineNet application, and a close-up of the garish chart showing energy production this morning.
The aesthetically-challenged ShineNet application, and a close-up of the garish chart showing energy production this morning.

It will probably help if you do this during the day, otherwise your inverter will probably be in shutdown mode due to the lack of photons in the air.

In an ideal world, you wouldn’t have a cable permanently hanging outside of your house, so let’s try running this over bluetooth.

Configuration 2

This configuration is just to verify that the Bluetooth to DB9 adapter works. For this configuration, the adapter is being powered by an external power source (using the mini-USB port on the side of the adapter)

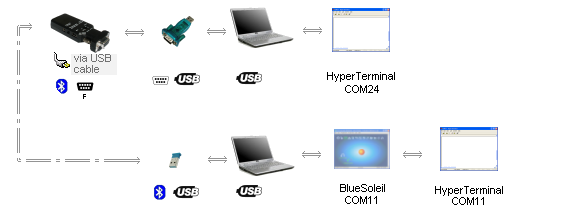

Bluetooth to DB9  adapter -> USB to DB9 adapter -> laptop -> HyperTerminal (COM24); Bluetooth to USB adapter -> laptop -> BlueSoleil (COM11) -> HyperTerminal (COM11)
Configuration 2: Bluetooth to DB9 adapter -> USB to DB9 adapter -> laptop -> HyperTerminal (COM24)
Second row: Bluetooth to USB adapter -> laptop -> BlueSoleil (COM11) -> HyperTerminal (COM11)

What I’m attempting to do here is to transfer data over the air between the two bluetooth devices which are now plugged into the same laptop (if your laptop was made in the last 5 years, you probably have bluetooth built in, and don’t need the second adapter above). It may be easier to use a separate laptop to connect to, if you’ve got access to one.

On the DB9 to Bluetooth adapter check the settings on the casing to ensure that they’re in this position:

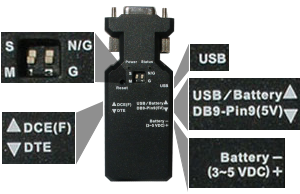

The DB9 to Bluetooth adapter
The DB9 to Bluetooth adapter
  • DCE(F) / DTE toggle switch is in DCE(F) mode
  • the S / M dip switch is pointing to M
  • the N/G / G dip switch is pointing to G
  • the USB/Battery / DB9-Pin9(5V) toggle switch is pointing to USB/Battery (and you’ve got the adapter powered by a mini-USB cable). If it’s powered up, there should be some red and blue lights flashing on the thing.


Bring up two HyperTerminal windows (you’re on XP, so you still have HyperTerminal… it’s probably under Start -> Programs -> Accessories -> Communications -> HyperTerminal. Alternatively, you could also use PuTTY in ‘Serial’ mode). Set one window to point to the COM port that the Bluetooth DB9 adapter is plugged into, and type this into it:

AT

and press Enter, at which point, you’ll get either this:

OK

which is good, or this

ERROR

which seems to go away if you type ‘AT’ again, or this

(incomprehensible garbage)

which probably means the adapter is a bit loose or you’re set to the wrong line speed / flow control / stop bits / parity bits, (it seems to default to 19200 bps / None / 0 / 1 out of the box), or this

(nothing at all)

which probably means the adapter isn’t plugged in, or something else is loose, or it’s not powered on, or you’ve selected the wrong COM port, or you’re looking at the wrong laptop, or your keyboard doesn’t work, or the serial port driver doesn’t work, or the serial port driver isn’t configured correctly, or the operating system has crashed, or something else entirely, or some combination of those things. Try shaking it and trying again.

Now that you’re talking to the Bluetooth adapter in old-school Hayes-speak , have the following conversation with it:

AT
OK
DEVICE=?
0000 00 000000
OK
NAME=?
Serial Adaptor
OK
NAME=Growatt Inverter
OK
NAME=?
Growatt Inverter
OK
PIN=?
1234
OK
PIN=RaRaRaSomething
OK
PIN=?
RaRaRaSomething
OK
ROLE=?
Slave Mode
OK
STATUS=?
Celsius         : 41
VERSION         : VER : 4.6.3
ADDRESS         : 0018 DB 010000
ROLE            : SLAVE MODE
FLOW            : DISABLE
ECHO            : ENABLE
PROMPT          : ENABLE
DISCOVER        : ENABLE
RECONNECT       : DISABLE
AUTO            : DISABLE
DIP             : DISABLE
<<<             : ENABLE
>>>             : ENABLE
DETECT          : DISABLE
SERIAL_PROTOCOL : 19200,N,1
NAME            : Growatt Inverter
PIN             : RaRaRaSomething
DEVICE          : 0000 00 000000
CONNECT         : 0000 00 000000
OK

Now in BlueSoleil (or the native Windows Bluetooth device stack, if you can manage to get that working), search for your BlueTooth/DB9 adapter using the other bluetooth adapter (it should appear with the NAME you assigned above). You might want to try this from a completely different machine if you like, since this is testing BT<->BT connectivity. Pair with the adapter (using the PIN you entered above), and then allocate it a COM port. On my machine, BlueSoleil assigns the port COM11 to this device.

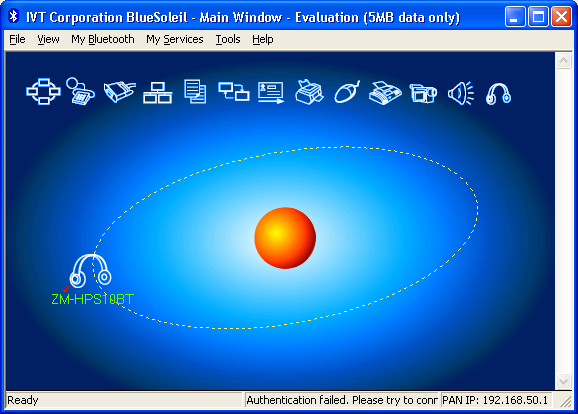

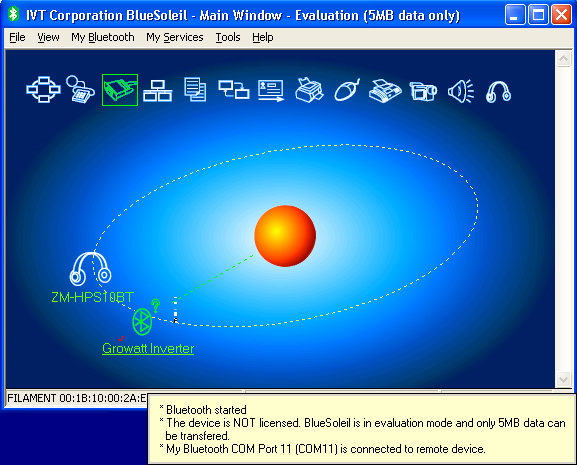

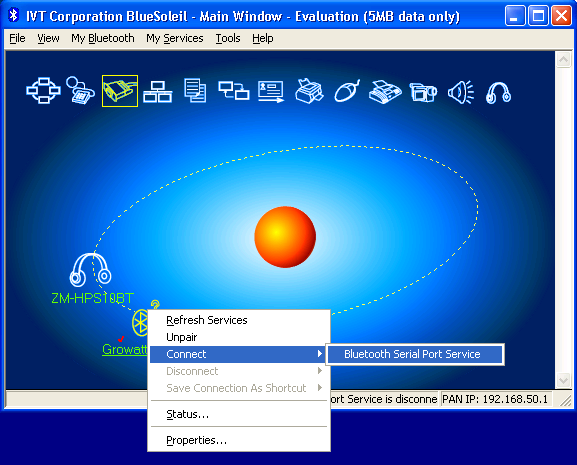

BlueSoleil before and after connecting to the Serial Port Service to the DB9 to Bluetooth adapter (called "Growatt Inverter" above) bluesoleil-connect-2

BlueSoleil before and after connecting to the Serial Port Service to the DB9 to Bluetooth adapter (called “Growatt Inverter” above). Click to zoom.

You should now be able to talk to yourself even more than usual by opening up another HyperTerminal window connected to the BlueSoleil COM port and tapping keys into it, which should appear on the HyperTerminal connected to the DB9 adapter COM port, and vice versa.

Now back on the DB9 adapter COM port, and this will save you mountains of time later on, type this:

AT
ERROR
AT
OK
BAUD=?
19200 bps
OK
BAUD=9600
OK
àøæ

That àøæ at the end is HyperTerminal/PuTTY not being able to deal with changing linespeeds. Try reconnecting using 9600bps and everything should be right as rain a bright, electricity producing day.

If you don’t do that, be prepared to spend a couple of entertaining hours with portmon and on websites containing pages titled ‘Adventures In Bluetooth‘ trying to discover why the next bit doesn’t work.

Configuration 3

Now we want to test connecting the inverter by Bluetooth. You’ll notice the Bluetooth to DB9 adapter is still connected to the Inverter via a cable and the null modem adapter, and is powered through an external 5V USB.

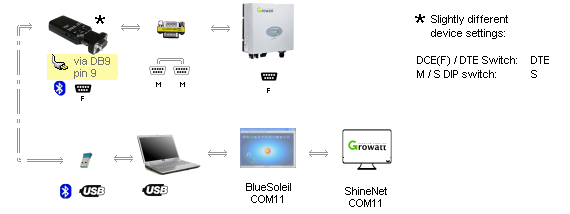

Bluetooth to DB9 adapter -> DB9 M/M null modem adapter -> DB9 extension cable -> Inverter; Bluetooth to USB adapter -> laptop -> Shinenet
Configuration 3: Bluetooth to DB9 adapter -> DB9 M/M null modem adapter -> DB9 extension cable -> Inverter
Second row: Bluetooth to USB adapter -> laptop -> Shinenet


This is the part that probably won’t work, so why not fire up portmon (from SysInternals) anyway and watch the bits fly over the air.

You’ll find that portmon doesn’t work for some reason, so try it in client/remote mode by going to Start -> Run and typing “c:\util\portmon /c“, then Start -> Run and typing “c:\util\portmon“, typing Ctrl-R, then “localhost“, selecting the bluetooth adapter COM port, sit back, and enjoy watching things like this appear:

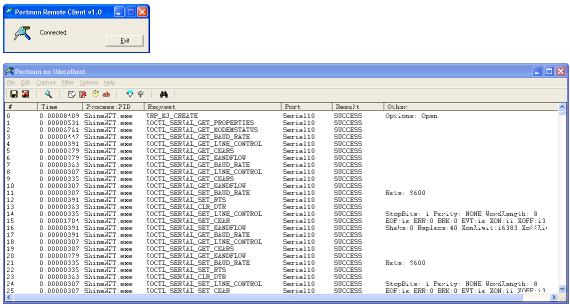

portmon in client and remote modes
portmon in client and remote modes

Or, in a slightly more readable form:

0

0.01816823

ShineNET.exe

IRP_MJ_CREATE

Serial2

SUCCESS

Options: Open

1

0.00000335

ShineNET.exe

IOCTL_SERIAL_GET_PROPERTIES

Serial2

SUCCESS

2

0.00683802

ShineNET.exe

IOCTL_SERIAL_GET_MODEMSTATUS

Serial2

SUCCESS

3

0.00001145

ShineNET.exe

IOCTL_SERIAL_GET_BAUD_RATE

Serial2

SUCCESS

4

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_LINE_CONTROL

Serial2

SUCCESS

5

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_CHARS

Serial2

SUCCESS

6

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_HANDFLOW

Serial2

SUCCESS

7

0.00000223

ShineNET.exe

IOCTL_SERIAL_GET_BAUD_RATE

Serial2

SUCCESS

8

0.00000251

ShineNET.exe

IOCTL_SERIAL_GET_LINE_CONTROL

Serial2

SUCCESS

9

0.00000168

ShineNET.exe

IOCTL_SERIAL_GET_CHARS

Serial2

SUCCESS

10

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_HANDFLOW

Serial2

SUCCESS

11

0.00583650

ShineNET.exe

IOCTL_SERIAL_SET_BAUD_RATE

Serial2

SUCCESS

Rate: 9600

12

0.00000279

ShineNET.exe

IOCTL_SERIAL_SET_RTS

Serial2

SUCCESS

13

0.00295345

ShineNET.exe

IOCTL_SERIAL_CLR_DTR

Serial2

SUCCESS

14

0.00297021

ShineNET.exe

IOCTL_SERIAL_SET_LINE_CONTROL

Serial2

SUCCESS

StopBits: 1 Parity: NONE WordLength: 8

15

0.00000251

ShineNET.exe

IOCTL_SERIAL_SET_CHAR

Serial2

SUCCESS

EOF:1a ERR:0 BRK:0 EVT:1a XON:11 XOFF:13

16

0.00697212

ShineNET.exe

IOCTL_SERIAL_SET_HANDFLOW

Serial2

SUCCESS

Shake:0 Replace:40 XonLimit:17248 XoffLimit:17248

17

0.00000279

ShineNET.exe

IOCTL_SERIAL_GET_BAUD_RATE

Serial2

SUCCESS

18

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_LINE_CONTROL

Serial2

SUCCESS

19

0.00000168

ShineNET.exe

IOCTL_SERIAL_GET_CHARS

Serial2

SUCCESS

20

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_HANDFLOW

Serial2

SUCCESS

21

0.00000223

ShineNET.exe

IOCTL_SERIAL_SET_BAUD_RATE

Serial2

SUCCESS

Rate: 9600

22

0.00000196

ShineNET.exe

IOCTL_SERIAL_SET_RTS

Serial2

SUCCESS

23

0.00000196

ShineNET.exe

IOCTL_SERIAL_CLR_DTR

Serial2

SUCCESS

24

0.00000223

ShineNET.exe

IOCTL_SERIAL_SET_LINE_CONTROL

Serial2

SUCCESS

StopBits: 1 Parity: NONE WordLength: 8

25

0.00000196

ShineNET.exe

IOCTL_SERIAL_SET_CHAR

Serial2

SUCCESS

EOF:1a ERR:0 BRK:0 EVT:1a XON:11 XOFF:13

26

0.00685366

ShineNET.exe

IOCTL_SERIAL_SET_HANDFLOW

Serial2

SUCCESS

Shake:0 Replace:40 XonLimit:17248 XoffLimit:17248

27

0.00000251

ShineNET.exe

IOCTL_SERIAL_CLR_DTR

Serial2

SUCCESS

28

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_BAUD_RATE

Serial2

SUCCESS

29

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_LINE_CONTROL

Serial2

SUCCESS

30

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_CHARS

Serial2

SUCCESS

31

0.00000196

ShineNET.exe

IOCTL_SERIAL_GET_HANDFLOW

Serial2

SUCCESS

32

0.00000223

ShineNET.exe

IOCTL_SERIAL_SET_BAUD_RATE

Serial2

SUCCESS

Rate: 9600

33

0.00286349

ShineNET.exe

IOCTL_SERIAL_CLR_RTS

Serial2

SUCCESS

34

0.00000196

ShineNET.exe

IOCTL_SERIAL_CLR_DTR

Serial2

SUCCESS

35

0.00000196

ShineNET.exe

IOCTL_SERIAL_SET_LINE_CONTROL

Serial2

SUCCESS

StopBits: 1 Parity: NONE WordLength: 8

36

0.00000196

ShineNET.exe

IOCTL_SERIAL_SET_CHAR

Serial2

SUCCESS

EOF:1a ERR:0 BRK:0 EVT:1a XON:11 XOFF:13

37

0.00695703

ShineNET.exe

IOCTL_SERIAL_SET_HANDFLOW

Serial2

SUCCESS

Shake:0 Replace:0 XonLimit:17248 XoffLimit:17248

38

0.00000279

ShineNET.exe

IOCTL_SERIAL_CLR_RTS

Serial2

SUCCESS

39

0.00000196

ShineNET.exe

IOCTL_SERIAL_SET_TIMEOUTS

Serial2

SUCCESS

RI:-1 RM:-1 RC:-2 WM:0 WC:0

40

0.00000475

ShineNET.exe

IOCTL_SERIAL_SET_WAIT_MASK

Serial2

SUCCESS

Mask: RXCHAR RXFLAG CTS DSR RLSD BRK ERR RING

41

0.00000335

ShineNET.exe

IOCTL_SERIAL_SET_QUEUE_SIZE

Serial2

SUCCESS

InSize: 4096 OutSize: 2048

42

2.24699592

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

43

0.00000363

ShineNET.exe

IOCTL_SERIAL_PURGE

Serial2

SUCCESS

Purge: TXABORT TXCLEAR

44

0.00000475

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

45

0.00021679

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#~1D..T

46

0.00000531

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

47

0.00123060

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

48

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

49

0.00958809

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

50

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

51

0.00285958

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

52

0.00000307

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

53

3.08693367

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

54

0.00000559

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

55

0.00000391

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 18: #?.1A.LW03511224.\

56

0.00071294

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 19: ?#.1B.LW03511224..r

57

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

58

2.92590567

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

59

0.00000475

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

60

0.00000335

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 9: #?.1B.O.)

61

0.00068472

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2D…

62

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

63

0.01190570

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

64

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

65

0.00388290

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

66

0.00000251

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

67

3.01195040

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

68

0.00000531

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

69

0.00000391

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 27: #?.2D………..F…..3….

70

0.00118814

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2C…

71

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

72

0.01190906

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

73

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

74

0.01288851

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

75

0.00000335

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

76

0.00890951

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

77

0.00000279

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

78

2.97897331

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

79

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

80

0.00000335

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 39: #?.2C.1..oT.B.3G.1.8Growatt Inverter…

81

0.00078055

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2B…

82

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

83

0.01189090

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

84

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

85

0.00789877

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

86

0.00000307

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

87

2.99196322

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

88

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

89

0.00000335

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 29: #?.2B…………@…9….3..

90

0.00032546

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2A…

91

0.00000447

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

92

0.01288404

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

93

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

94

0.01091116

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

95

0.00000363

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

96

0.01291253

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

97

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

98

0.00390664

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

99

0.00000391

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

100

27.37493927

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

101

0.00000475

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

102

0.00000335

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 43: #?.2A#..V………..)……………..q…f

103

0.00066992

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

104

0.00000615

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

105

0.00037966

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

106

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

107

0.00109595

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

108

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

109

0.00120015

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

110

0.00000559

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

111

0.00028300

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

112

0.00000531

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

113

0.00035675

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

114

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

115

0.00043497

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2A…

116

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

117

0.02389326

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

118

0.00000447

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

119

0.00989539

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

120

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

121

26.05390769

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

122

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

123

0.00000335

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 43: #?.2A#..J………………………..q….

124

0.00037994

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

125

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

126

0.00047576

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

127

0.00000615

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

128

0.00052130

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

129

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

130

0.00060678

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

131

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

132

0.00066126

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

133

0.00000475

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

134

0.00073277

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

135

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

136

0.00079340

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.2A…

137

0.00000447

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

138

0.01190850

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

139

0.00000419

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

140

0.01191353

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

141

0.00000363

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

142

0.01090111

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

143

0.00000447

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

SUCCESS

144

33.64178799

ShineNET.exe

IOCTL_SERIAL_WAIT_ON_MASK

Serial2

CANCELLED

145

0.00000503

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

146

0.00000363

ShineNET.exe

IRP_MJ_READ

Serial2

SUCCESS

Length 43: #?.2A#……P…………………….q….

147

0.00082552

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

148

0.00000587

ShineNET.exe

IOCTL_SERIAL_GET_COMMSTATUS

Serial2

SUCCESS

149

0.00102248

ShineNET.exe

IRP_MJ_WRITE

Serial2

SUCCESS

Length 8: ?#.1A…

150

0.00000643

ShineNET.exe

IRP_MJ_CLEANUP

Serial2

SUCCESS

151

0.00679947

ShineNET.exe

IRP_MJ_CLOSE

Serial2

SUCCESS

portmon has the ability to save logs of your COM port communications, so when things go pear-shaped, try grabbing a trace of a successful connection (over the wired serial cable) and the unsuccessful connection (over bluetooth), and compare and contrast in your favourite text editor or comparison tool.

The trace above shows what portmon gives me for a successful connection to my inverter, if that’s of any use whatsoever.

So for this test, fire up ShineNet again, give it the COM port address assigned to your (now remote) Bluetooth/RS232 adapter in BlueSoleil and, with any luck, you’ll get some more stats flowing over the air.

Configuration 4

Configuration 4a gets us a bit closer to how this thing should typically run.

Bluetooth to DB9 adapter (poewred by DB9 ping 9) -> DB9 M/M null modem adapter -> DB9 extension cable -> Inverter; Bluetooth to USB adapter -> laptop -> Shinenet

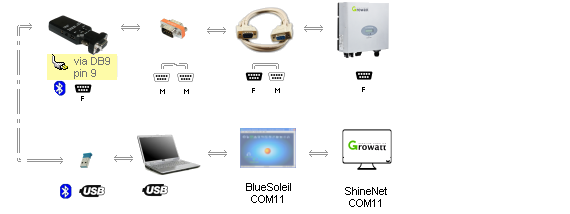

Configuration 4a: Bluetooth to DB9 adapter (powered by DB9 pin 9) -> DB9 M/M null modem adapter -> DB9 extension cable -> Inverter
Second row: Bluetooth to USB adapter -> laptop -> Shinenet

Righteo, now it’d be nice if I didn’t have a 5v power adapter plugged into the side of the DB9 to Bluetooth adapter, since the whole purpose of using bluetooth was to get this working wirelessly, which kind of defeats the purpose if I’ve got an extension cable connected to the adapter outside the house.

I have it on good authority that it’s possible to power this adapter directly from the inverter, using current on pin 9 of the DB9 connector. Try flicking the switch on the side of the adapter from ‘USB/Battery‘ to ‘DB9 Pin 9(5V)‘ and then be amazed when the lights go out and it ceases to work.

This is because the cheap-arse null modem you purchased doesn’t actually have a pin 9. Go on, check it. Check it twice. Isn’t that fascinating ? Yes. Yes it is.

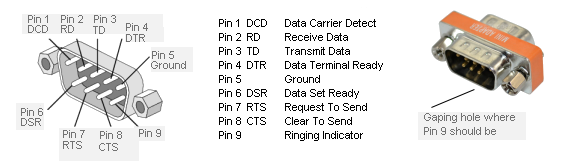

One of these things is not like the other.  One of these things is missing pin 9.
One of these things is not like the other.
One of these things is missing pin 9.

So as a workaround, use that DB9 M/F null modem you definitely purchased weeks in advance instead, and a DB9 M/M gender changer so that everything’s boy/girl/boy/girl from the bluetoothy adapter to the inverter.

Bluetooth to DB9 adapter (powered by DB9 pin 9) -> DB9 M/M gender changer -> DB9 F/M null modem adapter -> DB9 extension cable -> Inverter; Bluetooth to USB adapter -> laptop -> Shinenet

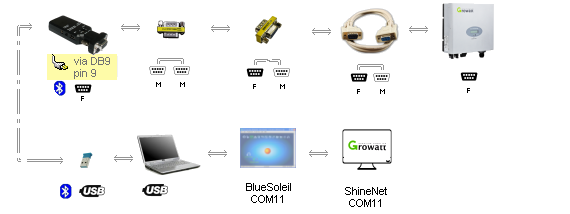

Configuration 4b: Bluetooth to DB9 adapter (powered by DB9 pin 9) -> DB9 M/M gender changer -> DB9 F/M null modem adapter -> DB9 extension cable -> Inverter
Second row: Bluetooth to USB adapter -> laptop -> Shinenet


This is where I’m up to at the moment, so this probably be revised in two weeks or so when the new null modem turns up.

That presumably works first time, so rip out the cable, put the bluetoothy adapter in a plastic bag so it won’t break the first time it rains, replace ShineNet with something that doesn’t look like as if it was written by the solar panel guy’s son over the course of a weekend, and there you go. Have you learnt nothing ? Of course it’s not going to work.

(One Month Later…)

You’ll probably find that the ebay seller just skirts a day short of their paypal-guarantee window and you receive the DB9 F/M null modem adapter exactly 30 days after you order it. Because life is meant to be spent waiting for other things to happen. Close the paypal dispute when the package arrives.

Break the adapter out of it’s bubble-wrap, attach it, turn everything on, and be amazed when it still appears to work. Flick the switch to get power from the DB9 line, and lo and behold, the power does flow, but the ones and zeroes that comprise the solar panel data don’t appear to make it to the bluetooth receiver on the laptop. So that’s annoying.

So it’s about this time that I receive a comment on this post through the absolute shart load of spam that I receive asking whether I should have the bluetooth thing in slave or master mode which gets me flicking through the specs sheet for this thing again. And what do you know, that DTE/DCE switch thing on the left hand side actually swaps the transmit/receive lines for you, meaning I didn’t need to get a separate null modem adaptery thing at all.

So there you go.

Log in to the adapter through HyperTerminal/PuTTY again, and enable the dip switch settings by entering this into it:

AT
OK
DIP=?
Disable DIP Switch
OK
DIP=Y
OK
DIP=?
Enable DIP Switch
OK

Now that the device is noticing what it’s dip switches are set to, flick the Master/Slave ( M / S ) dip switch to ‘ S ‘, and (this is the exciting part) the DCE(F) / DTE toggle on the side to DTE .

You can now remove the (possibly not working at all) DB9 F/M null modem adapter that took four weeks to arrive from the chain of doodads, and still get something that could be described as vaguely functional.

So now everything seems to be working hunkydory in Configuration 5a:

Bluetooth to DB9 adapter (powered by DB9 pin 9, modified settings) -> DB9 M/M gender changer -> DB9 extension cable -> Inverter; Bluetooth to USB adapter -> laptop -> Shinenet
Configuration 5a: Bluetooth to DB9 adapter (powered by DB9 pin 9, modified settings) -> DB9 M/M gender changer -> DB9 extension cable -> Inverter
Second row: Bluetooth to USB adapter -> laptop -> Shinenet

meaning (and this is the last time I’ll be firing up Paintshop Pro for this blog post hopefully), it now appears to work in Configuration 5b:

Bluetooth to DB9 adapter (powered by DB9 pin 9, modified settings) -> DB9 M/M gender changer -> Inverter; Bluetooth to USB adapter -> laptop -> Shinenet
Configuration 5b: Bluetooth to DB9 adapter (powered by DB9 pin 9, modified settings) -> DB9 M/M gender changer -> Inverter
Second row: Bluetooth to USB adapter -> laptop -> Shinenet


I shall leave replacing the laptop with a raspi, and replacing the ShineNet software with something else completely for another thrilling installment. Stay tuned, Solar Warriors.


    Attention retail giants: I am prepared to say anything here for the right kind of incentive. And by incentive, I mean cash.
    Enjoy the menu items that don’t do anything, the fullscreen images of real-estate clipart and/or layout bugs when you attempt to resize it, and expect it to hang every second time you attempt to close it down
    and if you’re old enough to be putting solar panels on your house, you’re old enough to remember Hayes commands. Take a few moments to reminisce about the thousands of different modem command variants that used to exist. Ahh. Isn’t it wonderful that you’ll never need to know any of that again.
    Although to be fair, these inverters are starting to have wifi built-in now, so all of this will probably be obsolete in a month or two. Enjoy !


17 Comments

Add a Comment

Your email address will not be published. Required fields are marked *
